Link Established.
SynLink™ PDUs are designed with built-in network watchdogs to ensure 24/7 access.
Cart
menu
Featured Guide
Set Up AutoPing Device and Network Monitoring
Tired of turning things off and back on again? The AutoPing Monitor saves you time and money by detecting the problem and doing it for you.
SynLink Portfolio
PDUs by Series
chevron_right
Switched Pro+
Remote access. Switched outlets, circuit-level energy monitoring (KWH), and outlet-level power (Amps).
Switched
Remote access. Switched outlets and circuit-level current (Amps).
Monitored
Remote access. Circuit-level energy monitoring (KWH).
PDUs by Specialty
chevron_right
Three-Phase (Delta/Wye)
Enterprise Data Center PDUs for high density racks.
Automatic Transfer Switch
Primary and secondary sources add power redundancy for single corded equipment.
High Powered Multi-Inlet
Save on space and cost with up to 4 independent circuits in one PDU. Available as 2-in-1 or 4-in-1
Compact
Four outlets with enterprise features in a small form factor.
Key Features
SynLink PDUs have innovative features that save you time and money.
Relay Health Monitor
Event-Based Webhooks
High-Accuracy KWH
Locking Outlets
Fault-Tolerant CAN Bus.
Lifetime Diagnostics
Upcoming
Contact us to learn more about exciting new features.
Embedded Cellular 4G Modem
SynLink Cloud Platform
Wifi Module
2 x Ethernet Redundancy/Passthrough
DC Switching Modules
Digital I/O Modules
Remote Access Experts
Maintain absolute visibility and control of your equipment with peace of mind.
filter_drama
Connect
remotely and save money on service calls.
analytics
Capture
load metrics for all connected devices.
notifications_none
Reduce
downtime with programmable alerts.

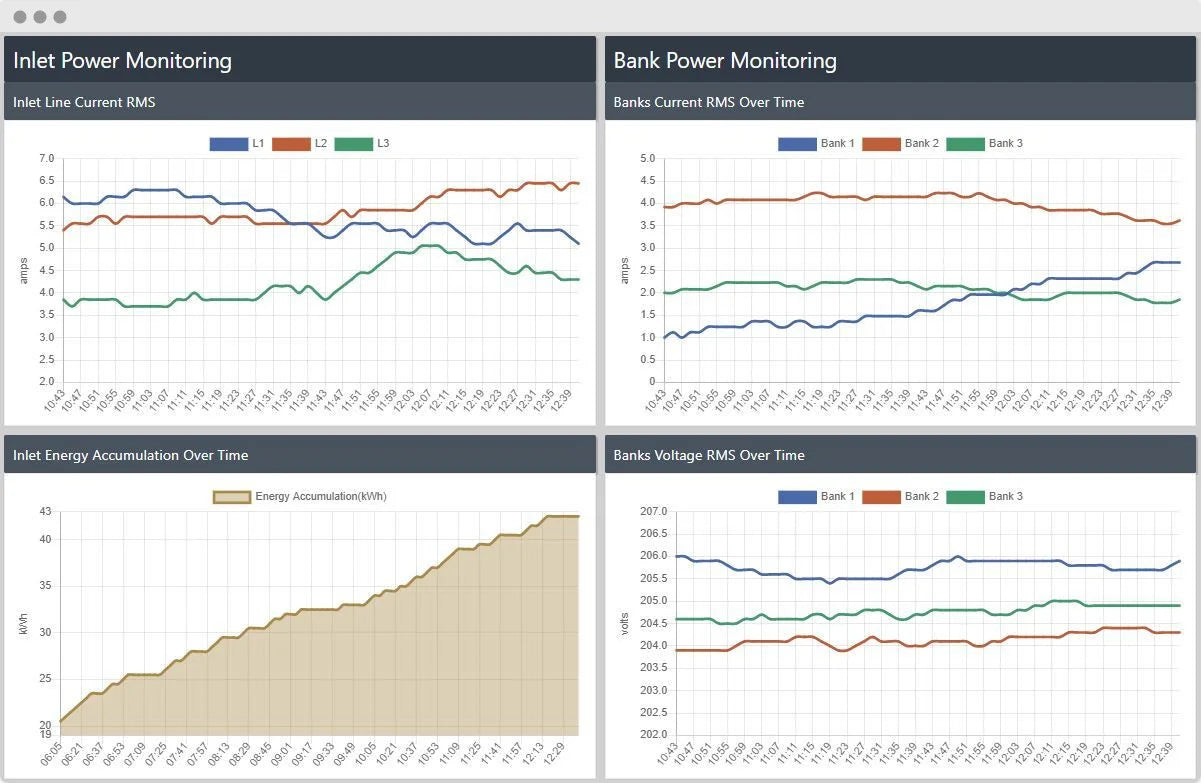

Billing Grade Accuracy
Measure energy consumption at the PDU inlet and branch circuit levels. Enable local or remote logging with syslog to store Kilowatt-Hours (kWh), Apparent Power (VA), Active Power (W), Reactive Power (VAR), and Power Factor. The data collected can be used to quickly identify equipment inefficiencies and reduce the cost of energy bills.
All SynLink PDUs include inlet and branch circuit energy sensors.

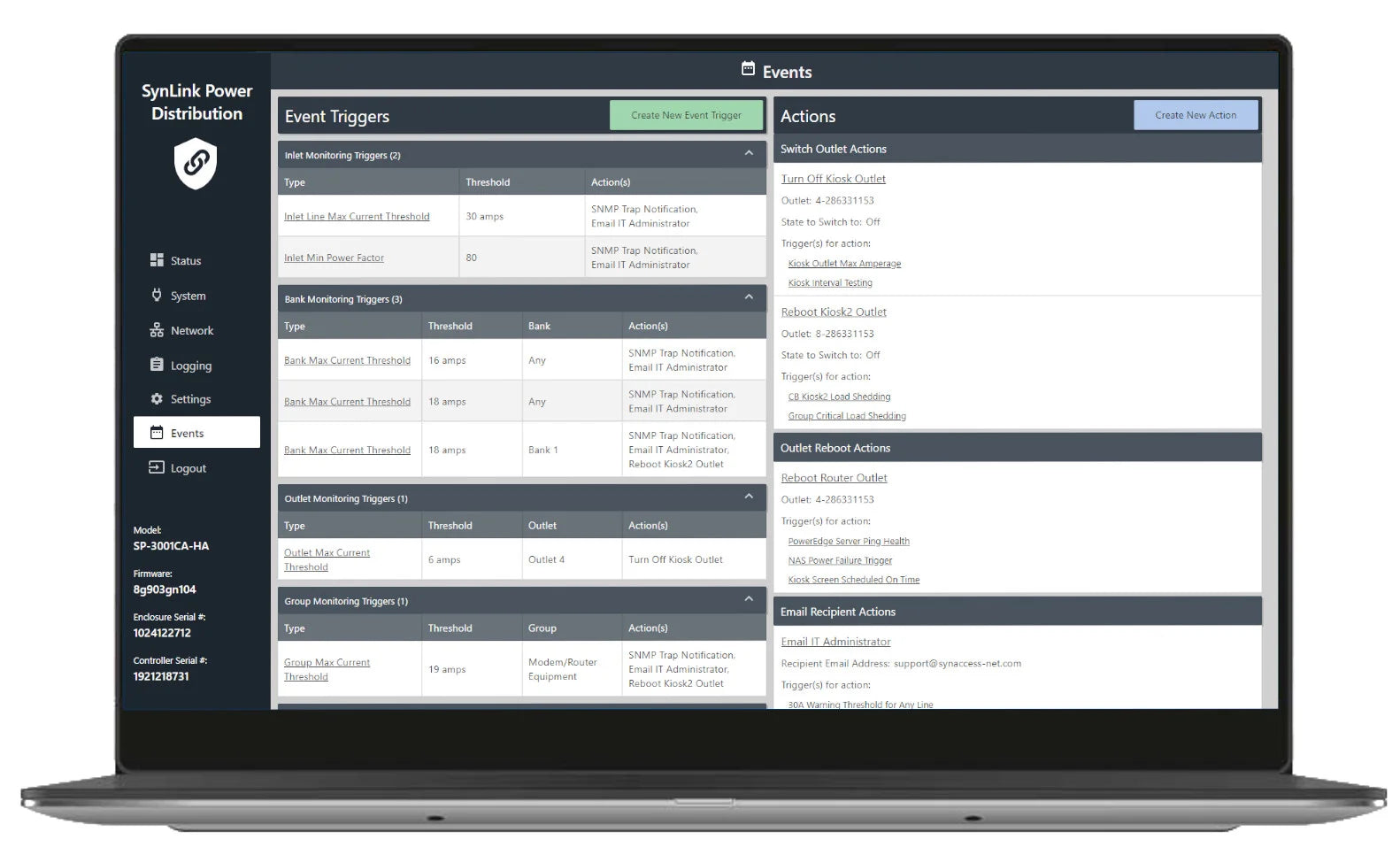

Configurable Event Monitor
Take advantage of the built-in Auto-Ping/Power-Cycle feature for automated recovery of unresponsive equipment. Alert yourself and act on problems right away with SNMP Trap notifications, HTTP Web Hooks, or Email. Use the intuitive web interface to customize trigger Events and set Actions for any situation.
All SynLink PDUs include Auto-Ping, Event-Action, and Scheduling features.
Powerful Control Module
SynLink PDUs feature Arm®Cortex-A5 processors for energy-efficient, high-performance compute.
backup_table
Dual Firmware Images
Powerloss-safe firmware updates
lock
Advanced Security
AES encryption secures against malicious attacks
upgrade
Hot-Swappable
Service PDU without downtime
Seamless Integration
Integrate SynLink PDUs and your existing infrastructure with minimal effort. SynLink PDUs come with a vibrant color LCD interface that allows IP address assignment (DHCP, Static) for easy setup. Rapid deployments and mass configuration for large sets of PDUs are simplified with pre-written scripts available in popular programming languages.
All SynLink PDUs support HTTP(S) API, Webhooks, SNMP V1/V2/V3, SSH Command Line Interface, Telnet, USB-serial, RS232 Serial, SMTP, Syslog, DHCP, and NTP.
Safety Certified
UL/CSA 62368-1 Complaint, cTUVus Listed. Certified by TÜV Rheinland for Product Safety and Quality Certification.
Products bearing the cTUV, TUVus or cTUVus Certification Marks reflect supplier commitment and confidence and have been independently confirmed to meet the minimum requirements of US and Canadian electrical safety standards.
Products bearing the cTUV, TUVus or cTUVus Certification Marks reflect supplier commitment and confidence and have been independently confirmed to meet the minimum requirements of US and Canadian electrical safety standards.
Explore Your Options
SynLink PDUs are available in hundreds of configurations.
SynLink Series Comparison
* Only applicable to single-phase PDUs.
** Not available in 1U Form Factors.
*** Planned and coming soon.
Metered
Notable Features
Circuit-Level Current Meter
Automatic Transfer Switch *
Optional
High Powered Multi Inlet**
Optional
Mechanical
Local Display
Form Factors - 0U, 1U, 2U
Durable Metal Enclosure
Hot-swappable Current Meter (Field-Replaceable)
0U Quick Install with Button Mounts
Security
Reliability & Safety
3-Year Standard Warranty
UL/CSA 62368-1 : 2019 Third Edition Compliant
SynLink Monitored
Notable Features
Circuit-Level Current Meter
Networking
SNMP, DCIM, HTTP(s), SMTP, Syslog, Serial, Telnet, SSH, Ping, DHC, NTP, TCP/IP, UDP, DNS, DHCP, CLI
Self-Monitoring Network Card
Built-in network watchdog
Sensors and Accessories Support
Temperature and Humidity, USB WiFi
Expansion Ports ***
Daisy chain multiple PDUs
Circuit and Inlet-Level Energy Monitor
Energy accumulation KWH, Apparent power VA, Active Power W, Power Factor, Line Frequency, Voltage V, Current A
Automatic Transfer Switch *
Optional
High Powered Multi Inlet**
Optional
Mechanical
Local Display
Form Factors - 0U, 1U, 2U
Durable Metal Enclosure
Hot-swappable Current Meter (Field-Replaceable)
0U Quick Install with Button Mounts
Local and Remote Firmware Upgrade
Security
Personal Access Token Authentication
User Permissions and Roles
SSH
HTTPS
SSL/TLS
LDAP/Radius ***
Reliability & Safety
3-Year Standard Warranty
UL/CSA 62368-1 : 2019 Third Edition Compliant
SynLink Switched Pro+
Notable Features
Circuit-Level Current Meter
Networking
SNMP, DCIM, HTTP(s), SMTP, Syslog, Serial, Telnet, SSH, Ping, DHC, NTP, TCP/IP, UDP, DNS, DHCP, CLI
Self-Monitoring Network Card
Built-in network watchdog
Sensors and Accessories Support
Temperature and Humidity, USB WiFi
Expansion Ports ***
Daisy chain multiple PDUs
Outlet Switching
Relay Health Monitor uses dedicated voltage sensors for each relay
Circuit and Inlet-Level Energy Monitor
Energy accumulation KWH, Apparent power VA, Active Power W, Power Factor, Line Frequency, Voltage V, Current A
Outlet-Level Power Meter
Active power W, Voltage RMS V, Current RMS A
Automatic Transfer Switch *
Optional
High Powered Multi Inlet**
Optional **
Mechanical
Local Display
Form Factors - 0U, 1U, 2U
Durable Metal Enclosure
Hot-swappable Current Meter (Field-Replaceable)
0U Quick Install with Button Mounts
Local and Remote Firmware Upgrade
Security
Personal Access Token Authentication
User Permissions and Roles
SSH
HTTPS
SSL/TLS
LDAP/Radius ***
Reliability & Safety
3-Year Standard Warranty
UL/CSA 62368-1 : 2019 Third Edition Compliant
