netBooter DX Series PDU

Smart Switched Power Distribution Units

The netBooter DX Series delivers secure, intelligent power management built for demanding IT environments. With individual outlet control, VLAN-aware networking, and robust SSH/HTTPS access, DX PDUs give you complete remote control of your equipment—anywhere.

Automate recovery with event-based triggers, monitor environmental conditions, and streamline oversight through our centralized management portal that lets you manage every PDU from a single interface.
Key Features
Individual Outlet Control
Remotely power cycle, enable, or disable each power outlet independently, giving you precise control over every connected device.

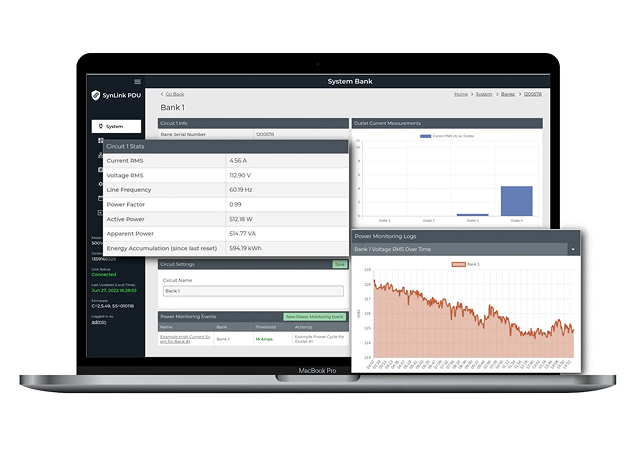

Centralized Fleet Management
Control and monitor all PDUs from a single portal. No port forwarding or firewall rule changes required.
VLAN & Multi-Network Support
Segment and manage multiple network lines with full 802.1Q VLAN compatibility for flexible deployments.
Secure Remote Access
Manage your PDU remotely via SSH, HTTPS, SNMPv3, or via our central management portal.
Zero-Touch Provisioning
Deploy PDU configurations at scale via our central management system for fast, scalable rollouts.
Inlet Current Monitoring
Measure real-time inlet current to prevent overloads and ensure safe, reliable power distribution
Environmental Monitoring
Track temperature and humidity using optional sensors to protect equipment from environmental risks
Directory-Based Authentication
Integrates with LDAP or RADIUS to provide centralized, enterprise-grade authentication and access control
Event-Based Automation
Define rules and triggers that automatically respond to power, environmental, or connectivity events.
Applications
Managed Service Providers (MSPs)
  • Multi-client remote power management
  • VLAN-segmented, cloud-managed fleets
  • Out-of-band recovery for SD-WAN and CPE stacks
Retail Chains
  • POS, routers, LTE failover equipment
  • Distributed branch IT with centralized control
  • Automated site recovery during outages
Kiosks & Self-Service Systems
  • Interactive terminals and multi-device kiosks
  • Scheduled resets and event-driven automation
  • Temperature and humidity monitored enclosures
Digital Signage Networks
  • DOOH players, controllers, modems
  • Remote fleet visibility across locations
  • Overnight resets and proactive recovery

Technical Specifications

Input
Input
IEC 320 C14
Input Voltage Options
100-120V, 60Hz  or
100-240V, 50-60Hz
Max Input Current
15A (12A derated)
Phase
Single-Phase
Input Measurement
Current RMS (A) Measurement
Output
Outlet Voltage Options
100-120V or 100-240V
Outlet Receptable Options
NEMA 5-15R or IEC 320 C13
Outlet Count Options
2, 5
Overload Protection
None
Outlet Measurement
None
Outlet Switching
Individual outlet switching
Access, Communication, and Security
Networking Protocols
HTTP(S), SSH, Telnet, SMTP, SNMPv1,2,3, DHCP, Syslog, Ping, NTP, IPv4, IPv6
Network Interface
10/100 BaseT Ethernet (RJ45)
Encryption
Yes
User Access Management
Local user accounts, as well as authentication via LDAP and RADIUS
Serial Communication Options
DB9 RS-232 or USB
Front Panel
LED indicators for individual outlet on/off status

1 LED indicator for PDU On/ Off status

1 LED indicator for Network status

1 7-digit LED display for inlet current
Sensors
Sensor port for Temperature and Humidity measurement via SPA-0010 Probe
Physical
Form Factor Options
Compact (2 outlet)

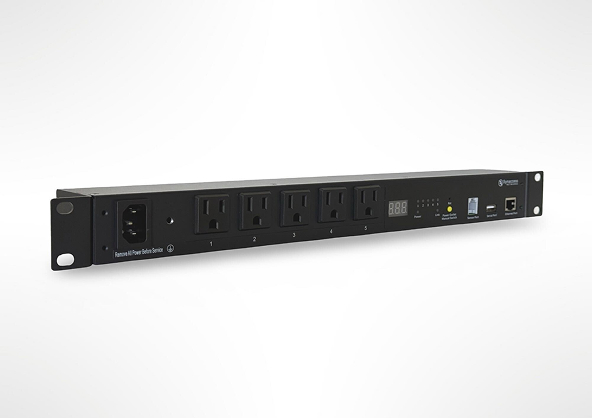

1U Strip (5 outlet)
Dimensions
Compact: 6.2 x 5.4 x 1.75 1U
Strip: 19” x 2.125” x 1.75”
Operating Temperature
-5C to 60 C
Storage Temperature
-25C to 65 C
Humidity
5-95%, non-condensing

Power Distribution for Mission Critical Applications

Automation, Alerting & Self-Healing Power Control

Create automation rules that react to real-world signals—connectivity loss, temperature changes, and more. Automatically cycle outlets, run recovery sequences, send alerts, or trigger webhooks. Detect problems, take action, and self-heal autonomously.

Reliable Access, Even When Networks Fail

Stay connected through multiple independent network paths with VLAN tagging (802.1Q) and multi-network configurations for secure, segmented access. Add modular out-of-band options like secondary WAN, USB LTE, and more (coming 2026) to stay connected even if the primary network fails.

Centralized Remote Access at Any Scale

Manage thousands of devices from a single pane of glass or securely operate a single PDU behind a firewall. Role-based access, encrypted channels, and enterprise-grade authentication ensure your remote operations stay protected and fully under your control.

Deep Logging, Event Tracking & Operational Insight

Track activity on both the PDU and connected devices. Logs capture user actions, connectivity or ping failures, power issues, temperature alerts, and more. Optional syslog export gives you a complete view to diagnose issues quickly and maintain reliable operations.

Seamless Integration with your Existing Tools

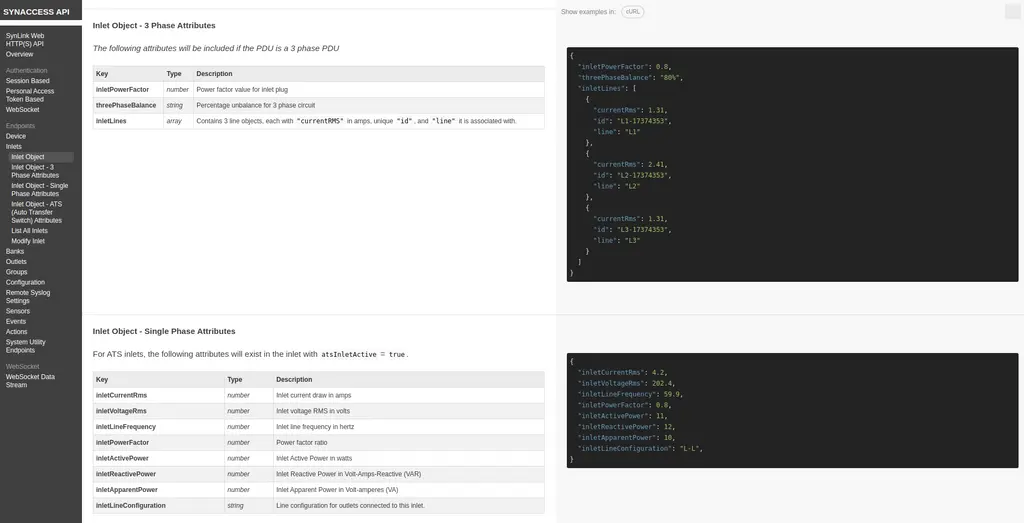

Enjoy plug-and-play integrations with Canopy, Q-SYS (coming 2026), and a growing ecosystem of supported platforms. For custom workflows, use our RESTful API on the PDU and portal, plus webhooks and SNMP for real-time control. Build anything from simple automations to fully customized integrations.

Model Configurations

SKU
Form Factor
Outlets
Inlet Plug
Outlet Type(s)
Voltage
Max Amps
Serial Port
NP-02DX-USB
Compact
2
IEC 320 C14
NEMA 5-15R
100-120V
13A (10.4A)
USB
NP-02DX-DB9
Compact
2
IEC 320 C14
NEMA 5-15R
100-120V
13A (10.4A)
DB9
NP-02DXH-USB
Compact
2
IEC 320 C14
IEC 320 C13
100-240V
13A (10.4A)
USB
NP-02DXH-DB9
Compact
2
IEC 320 C14
IEC 320 C13
100-240V
13A (10.4A)
DB9
NP-05DX-USB
1U Strip
5
IEC 320 C14
NEMA 5-15R
100-120V
15A (12A)
USB
NP-05DX-DB9
1U Strip
5
IEC 320 C14
NEMA 5-15R
100-120V
15A (12A)
DB9
NP-05DXH-USB
1U Strip
5
IEC 320 C14
IEC 320 C13
100-240V
15A (12A)
USB
NP-05DXH-DB9
1U Strip
5
IEC 320 C14
IEC 320 C13
100-240V
15A (12A)
DB9
Looking for a different configuration? Additional options and customizations are available—reach out to our sales team.
