Enterprise Grade Intelligent Power Distribution Units
The SynLink SP Series combines advanced, intelligent power management with enterprise-grade hardware designed for the most demanding infrastructure. With individual outlet control, detailed power metering, and modular connectivity, SP PDUs deliver secure, reliable remote management at scale. Automate recovery, monitor environmental conditions, and oversee your entire power network through a centralized management portal—all backed by robust, customizable hardware options.
Remotely power cycle, enable, or disable each power outlet independently, giving you precise control over every connected device.
Secure Direct or Centralized Management
Access each PDU securely through SSH, HTTPS, or SNMP, or manage your entire fleet from a single centralized portal with encrypted authentication and unified oversight.
Advanced Power and Energy Monitoring
Per-outlet current and active power measurement, plus energy-grade input metering (voltage RMS, line frequency, power factor, kWh, and more).
Built-In Power Protection
Optional surge suppression or circuit breaker protection on select models add an extra layer of safety and help protect connected equipment from unexpected power faults.
Automatic Transfer Switch (ATS)
Enables seamless switching between primary and secondary power sources on select models, providing uninterrupted power delivery when one source becomes unstable or fails.
Environmental Monitoring & Sensor Expansion
Support for temperature, humidity, leak detection, and digital I/O sensors for a wide range of additonal applications
Out-of-Band Connectivity

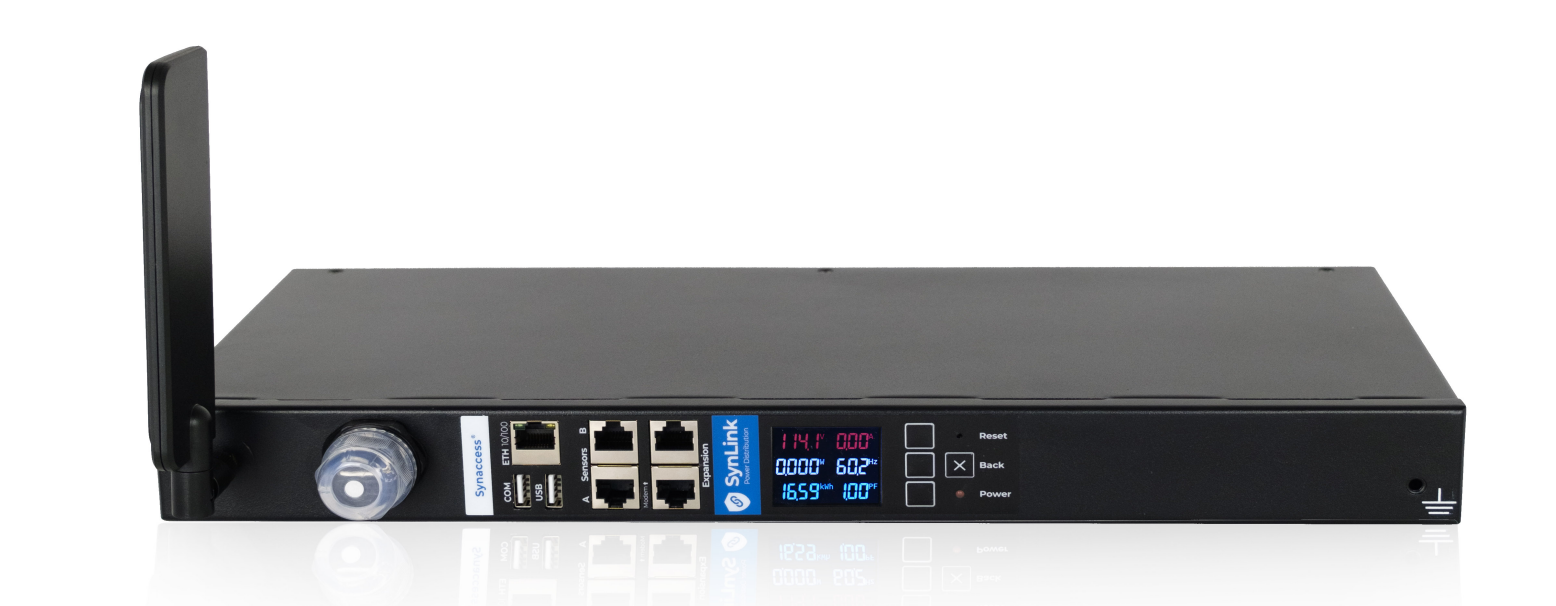

Maintain access even when the primary network goes down with embedded LTE, USB-connected external LTE, or a secondary WAN accessory.
VLAN & Multi-Network Support
Segment and manage multiple network lines with full 802.1Q VLAN compatibility for flexible deployments.
Directory-Based Authentication
Integrate with LDAP or RADIUS for centralized, enterprise-grade user access control.
Event-Based Automation
Define rules and triggers that automatically respond to power, environmental, or connectivity events.
Applications
Datacenters
High-density racks (0U / 3-phase)
ATS-redundant dual-feed installations
Remote console access for core routers and servers
Broadcast & Media Production
Control rooms and production suites
Video processing racks
Always-on environments requiring redundancy
Pro AV Infrastructure
Enterprise AV processor racks
LED/video wall control systems
Meeting rooms / theaters / event venues
Enterprise R&D Labs
Hardware development and validation labs
High-power test stations
Power telemetry for characterization and automation
Technical Specifications
Input
Input Plug Type Options
IEC 320 C20 NEMA 5-15P NEMA 5-20P NEMA L5-30P NEMA L6-30P NEMA L21-30P CS8365C

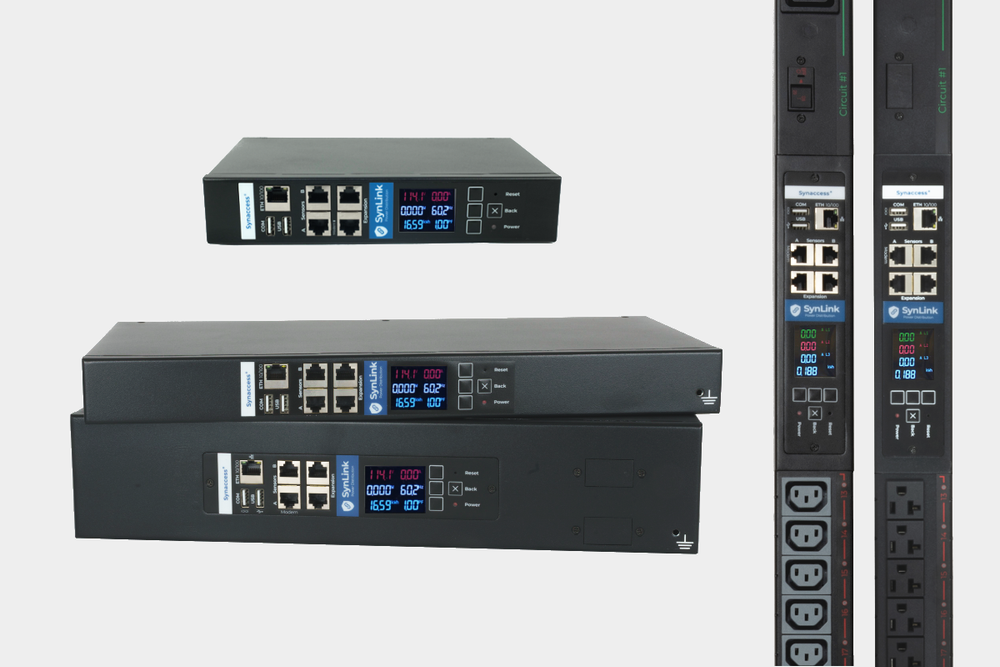

Compact: 9" x 1.75" x 5.8" 1U: 17" x 1.75" x 7.9" 2U: 17" x 3.5" x 7.9" 0U (24 outlet): 48" x 2.2" x 2.8" 0U (36 outlet): 70" x 2.2" x 2.8"
Operating Temperature
-5C to 60 C
Storage Temperature
-25C to 65 C
Humidity
5-95%, non-condensing
Power Distribution for Mission Critical Applications
Automation, Alerting & Self-Healing Power Control
Create automation rules that react to real-world signals—connectivity loss, temperature changes, and more. Automatically cycle outlets, run recovery sequences, send alerts, or trigger webhooks. Detect problems, take action, and self-heal autonomously.
Reliable Access, Even When Networks Fail
Stay connected through multiple independent network paths with VLAN tagging (802.1Q) and multi-network configurations for secure, segmented access. Add modular out-of-band options like secondary WAN, USB LTE, and more (coming 2026) to stay connected even if the primary network fails.
Centralized Remote Access at Any Scale
Manage thousands of devices from a single pane of glass or securely operate a single PDU behind a firewall. Role-based access, encrypted channels, and enterprise-grade authentication ensure your remote operations stay protected and fully under your control.
Real-Time and Accurate Measurements
Gather useful metrics, such as Power Factor for gauging equipment efficiency, Energy Metering for accurate bill estimation or Power for load balancing. Plus, all PDUs are calibrated to 1% accuracy so you have the best information possible.
Seamless Integration with your Existing Tools
Enjoy plug-and-play integrations with Canopy, Q-SYS (coming 2026), and a growing ecosystem of supported platforms. For custom workflows, use our RESTful API on the PDU and portal, plus webhooks and SNMP for real-time control. Build anything from simple automations to fully customized integrations.

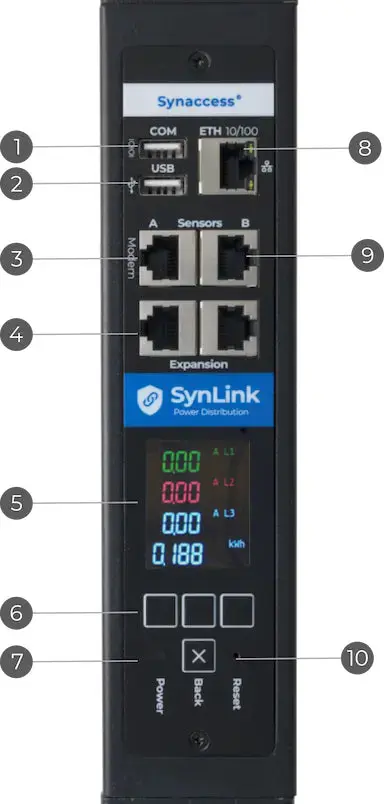

Controller Front Panel Ports
1. USB-Serial (FTDI) 2. USB 2.0 Host Port 3. Sensor Port A OR Serial Port (RS232) 4. Expansion Port 5. Color LCD Display 6. LCD Buttons 7. Power Status LED 8. Ethernet Port 10/100 Base T 9. Dedicated Sensor Port B 10. Reset Pin

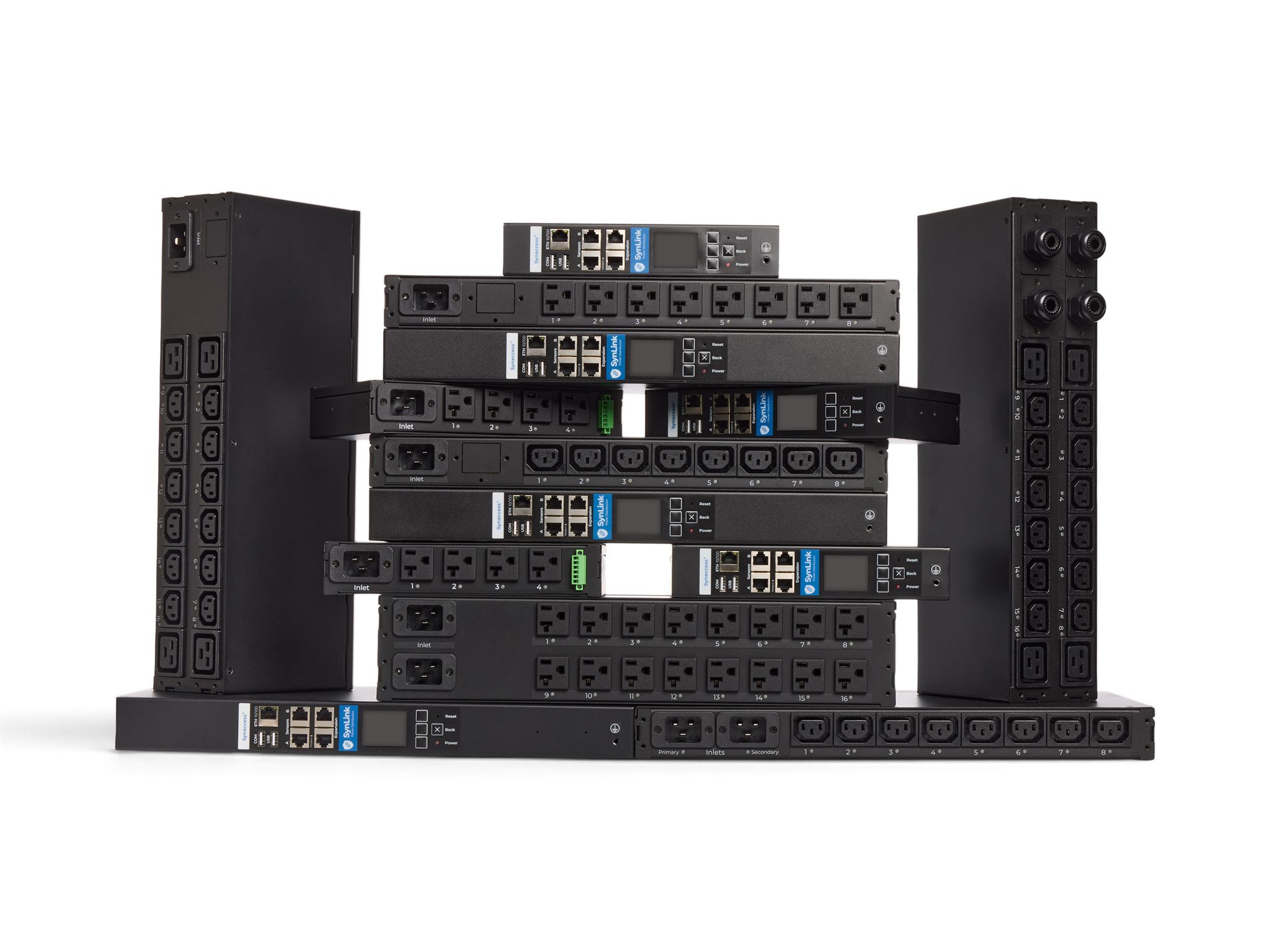

Model Configurations
SynLink SP Series Compact Model SKUs
SKU
Form Factor
Outlets
Inlet Plug
Outlet Type(s)
Voltage
Max Amps
Feature Notes
SP-1001CIE-01
Compact
4
IEC 320 C20
NEMA 5-20R
100-120V
20A (16A)
Surge Suppression Outlet-level measurements
SP-1001CIE-02
Compact
4
IEC 320 C20
IEC 320 C13
100-240V
20A (16A)
Surge Suppression Outlet-level measurements
SynLink SP Series 1U Model SKUs
SKU
Form Factor
Outlets
Inlet Plug
Outlet Type(s)
Voltage
Max Amps
Feature Notes
SP-1001AIE-01
1U
8
(1x) IEC 320 C20
NEMA 5-20R
100-120V
20A (16A)
Surge Suppression Outlet-level measurements
SP-1001AIE-02
1U
8
(1x) IEC 320 C20
IEC 320 C13
100-240V
20A (16A)
Surge Suppression Outlet-level measurements
SP-1001BIE-01
1U
8
(1x) IEC 320 C20
NEMA 5-20R
100-120V
20A (16A)
Input-level power measurement
SP-1001BIE-02
1U
8
(1x) IEC 320 C20
IEC 320 C13
100-240V
20A (16A)
Input-level power measurement
SP-1004AIE-01
1U
8
(2x) IEC 320 C20 Automatic Transfer Switch
NEMA 5-20R
100-120V
20A (16A)
Automatic Transfer Switch Outlet-level measurements
SynLink SP Series 2U Model SKUs
SKU
Form Factor
Outlets
Inlet Plug
Outlet Type(s)
Voltage
Max Amps
Feature Notes
SP-2001AIE-04
2U
16
(1x) IEC 320 C20
NEMA 5-20R
100-120V
20A (16A)
Outlet-level measurements
SP-2008AIE-04
2U
16
(2x) IEC 320 C20
Dual Circuit
NEMA 5-20R
100-120V
2x 20A (16A)
8x Outlets per Input Outlet-level measurements
SP-2001ANJ-06
2U
16
(1x) NEMA L5-30P
(4x) IEC 320 C19 (12x) IEC 320 C13
100-120V
30A (24A)
2x 1-Pole Breakers (UL-498)
Outlet-level measurements
SP-2001ANK-06
2U
16
(1x) NEMA L6-30P
(4x) IEC 320 C19 (12x) IEC 320 C13
100-240V
30A (24A)
2x 2-Pole Breakers (UL-498)
Outlet-level measurements
SP-2004ANK-06
2U
16
(2x) IEC 320 C20 Automatic Transfer Switch
(4x) IEC 320 C19 (12x) IEC 320 C13
100-240V
30A (24A)
Automatic Transfer Switch 2x 2-Pole Breakers (UL-498)
Looking for a different configuration? Additional options and customizations are available—reach out to our sales team.
Customizations
Customization
Description
Applicable Models
Automatic Transfer Switch (ATS)
Automatically switch to a secondary power source during a primary source outage without interrupting power
SP-1004* series PDUs SP-2004* series PDUs SP-4004* series PDUs
Surge Suppression
Safeguard against power spikes with surge suppression
Any SynLink Single Phase PDU
Integrated LTE Modem
Ensure out-of-band access and control, even without local network availability
SP-100* series PDUs
Dual Circuit Multi-Inlet
Upgrade your PDU with an additional input plugs, creating 2 isolated circuits where outlet banks are powered by dedicated inputs. A/B Side redundancy in a single form factor.
SP-1008B* series PDUs SP-2008* series PDUs SP-4008* series PDUs
Quad Circuit Multi-Inlet
Upgrade your PDU with 3 additional input plugs, creating 4 isolated circuits where outlet banks are powered by dedicated inputs. Effectively quadruple the power capacity per PDU.
SP-2008B* series PDUs
Step-Down Transformer
Convert high-voltage 208-240V inputs into 120V output, enabling use of standard 120V equipment in facilities wired for higher voltage.
SP-200* series PDUs
Looking for a different configuration? Additional options and customizations are available—reach out to our sales team.
